EFGC-Series - middle duty flail mower for working width from 135cm to 195cm
Middle duty flail mower with 800gr flail hammers for small and medium sized tractors from 25 hp to 65 hp with CAT I/II 3-point hitch
Bowell EFGC flail mowers comply to all applicable safety regulations and are CE-tested following the 2006/42/EC machine directive.
➤ For tractors with cat. I & II 3 point hitch
➤ Performance rotor shaft with spiral arranged flail hammers
➤ Up to a grass height of approx. 75 cm
➤ 135 to 195 cm working widths
➤ For 25-65 HP tractor
Including PTO shaft ✓
Including 2 l gear oil ✓
Free shipping ✓
Video
Application
The new 2020 Bowell EFGC flail mowers now come with the Bowell Power Efficiency technology. If your tractor supports 1000rpm PTO speed in addition to the standard 540rpm speed, you can use your new Bowell EFGC flail mower also with the highspeed option. Just swap the two pulleys from the belt drive against each other and you can reach same mowing performance with higher efficiency and less fuel consumption. Save fuel with the new Bowell Power Efficiency technology at no extra cost from the first meter.
EFGC flail mowers can be used efficiently on medium sized areas with a grass height of up to 75cm, which need mowing twice or three times a year.
Branches and even small bushes with a diameter of up to 25mm are shredded by the EFGC flail mower. EFGC mowers are true allround flail mowers for tractors up to 60hp engine power. They can be used for light duty jobs such as frequent mowing of horse paddocks but are also capable of heavy duty work and they are extremely price attractive flail mowers.
Technology
The heavy ball-bearing mounted self cleaning rear roller can be set to different mowing heights from 20 to 75mm. The mower´s height adjustable side skids avoid that the flail hammers can touch the ground even in rough environment. Starting from model year 2020 we are using solid stainless steel grease nipples. An additional support leg on the front of the housing improves storage stability. A CE approved PTO shaft comes with the shipment and can be used for an 80cm to 110cm connection length but can be shortened according to your demands. T
SKF ball bearing
Underneath the solid 4mm mower housing the laser balanced rotor shaft is equipped with 18 to 28 of our forged and galvanized 800 g performance flail hammers. The flails have a sloped inner surface so that debris will not easily stick to them. Starting from model year 2020 all EFGC flail mowers come with SKF ball-bearings, sitting in massive CNC-made bearing seats. The new stainless steel grease nipples are easily accessible from outside the mower housing and are protected against dirt and damage.The mower´s rotor shaft driven by the tractor´s PTO shaft turns with up to 2200rpm and shreds material to a minimum size to let it rot fast. The heavy ball-bearing mounted rear roller offers smooth operation. A further improved, spiral arrangement of the flails on the rotor shaft guarantees maximum performance with minimum effort for the tractor.
New drive system with 4 belts
Like all other Bowell mowers the EFGC flail mowers have an electronically balance rotor shaft, which is driven by three or four 17mm belts, depending on the working width.
Starting from 175cm working width a 4-belt drive system is used with forged pulleys. Despite the high flail hammer weight this guarantees an almost 100% power transfer rate with virtually no belt slippage.
The new belt cover offers a unique feature in this mower class that lets you check belt tension without having to remove the belt cover. This makes maintenance a lot easier.
Bowell EFGC-series features
✅ transmission from COMER Italy
✅ rotor shaft with SKF ball bearings and CNC bearing seats
✅ mower can be used with 540 or 1000rpm PTO speed
✅ performance rotor with spiral arranged lail hammers
✅ stainless steel grease nipples
✅ wider 4-belt pulleys with 17mm belts for EFGC-175/195
✅ wider 3-belt pulleys with 17mm belts for EFGC-135/155
✅ easy testing of belt tension with out tools
✅ 800gr flail hammers, forged and galvanized
✅ replaceable counter knives
Bowell Tractor firmly believes that you will not find any other middle duty tractor flail mower with a better value for money in the market. Please feel free to compare our mower to others in detail and we are sure you will agree.
2 litre of our special gear oil is included in the shipment. Due to logistic reasons our machines come without fluids, oil or grease filled in. BEFORE FIRST USE please carefully read the multi lingual user manual.
How does the EFGC flail mower position behind your tractor ?
The reference point is always the centre of your tractor, i.e. where the PTO output is.Let us assume that your tractor is 84 cm wide from its centre to the right outer edge of the tyre (i.e. 168 cm total width), then the mulcher should extend more than this 84 cm to the right from the centre of the tractor. This allows the mulcher to mow outside the right rear wheel. This would allow you to keep some distance to e.g. a fence, bush, tree or shed with the tractor and still mow flush.
The three-point bracket can be mounted in two different positions on the mower housing. These are marked here as A1, B1, etc. and A2, B2, etc.
If the mower is to extend more than 84 cm from the centre of the tractor to the right in the example chosen here, the EFGC-135 would be too narrow (A1 = 754 mm), but with the EF-155 you could already mow 11 cm outside of the right rear wheel (A1 = 954mm). This 11 cm may not be enough because you want to mow under a fence or bush. If your tractor has enough power, you could choose the EFGC-175 (A1= 1154 mm) which can mow 31 cm outside of your tractor's rear wheel, or the EFGC-195 which can do over 50 cm.

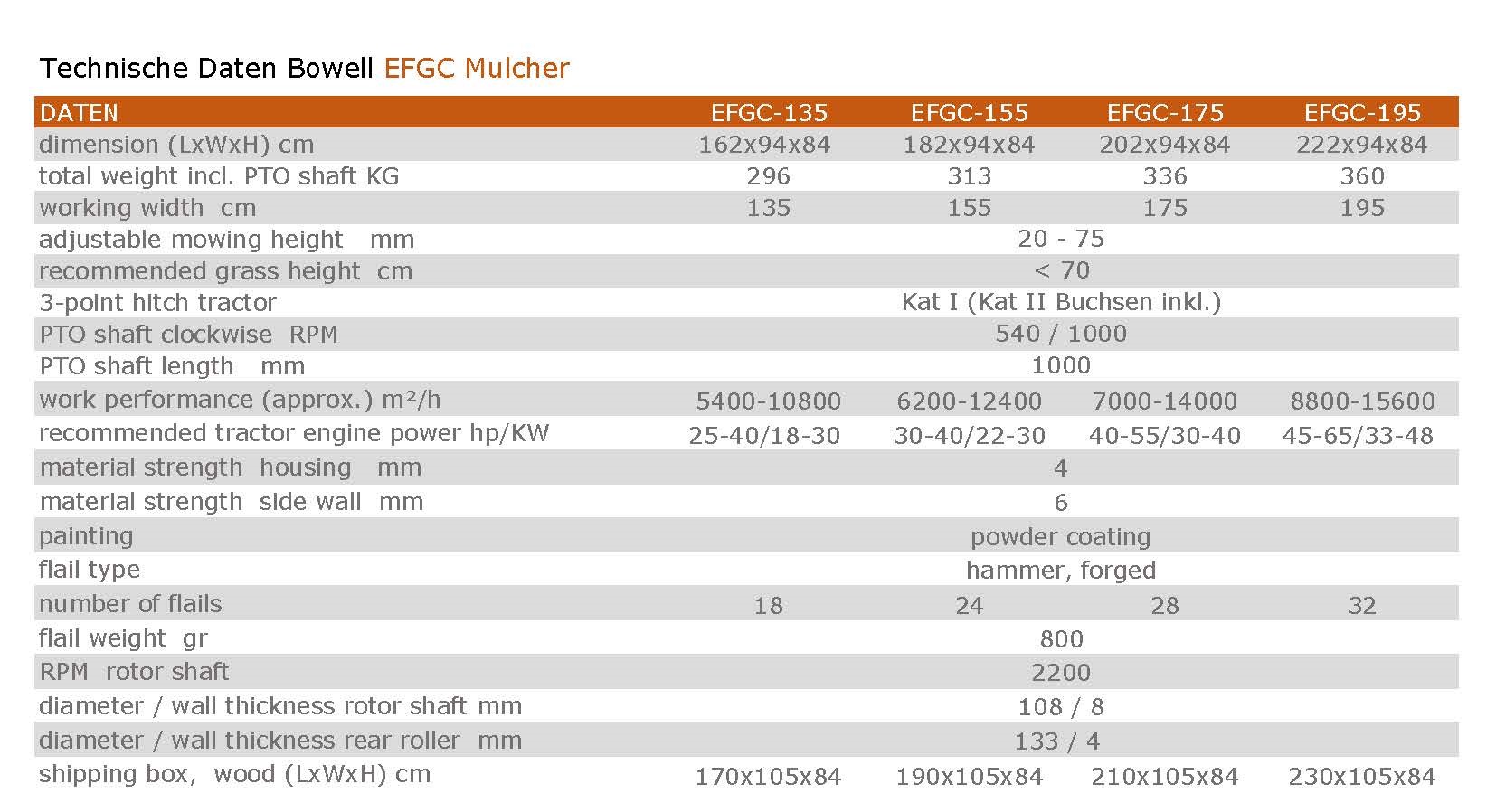

| Technical Data Bowell EFGC rear mower flail mower | ||||
| DATA | EFGC-135 | EFGC-155 | EFGC-175 | EFGC-195 |
| Dimensions (LxWxH) cm | 162x94x84 | 182x94x84 | 202x94x84 | 222x94x84 |
|---|---|---|---|---|
| Total weight incl. PTO shaft kg | 296 | 313 | 336 | 360 |
| Working width cm | 135 | 155 | 175 | 195 |
| Recommended grass height cm | < 70 | |||
| Adjustable mowing height mm | 20 - 75 | |||
| 3-Point hitch tractor | Cat 1 (Cat 2 bushings incl.) | |||
| Tractor PTO shaft clockwise turning RPM | 540 / 1000 | |||
| Length PT Oshaft mm | 1000 | |||
| Working efficiency (approx) m²/h | 5400-10800 | 6200-12400 | 7000-14000 | 8800-15600 |
| Drive belt qty. / width mm | 3 / 17 | 3 / 17 | 4 / 17 | 4 / 17 |
| Tractor engine power recommended hp/KW | 25-40/18-30 | 30-40/22-30 | 40-55/30-40 | 45-65/33-48 |
| Rotor shaft diameter / wall thickness mm | 108 / 8 | |||
| Rear roller diameter / wall thickness mm | 133 / 5 | |||
| Rotor shaft diameter turning mm | 358 | |||
| flail speed m/sec | 41 | |||
| Material strength housing mm | 4 | 5 | ||
| Material strength side wall mm | 6 | |||
| Painting | powder coating | |||
| Flail type | hammer, forged | |||
| Number of flails | 18 | 22 | 26 | 28 |
| Flail weight gr | 800 | |||
| RPM rotor shaft | 2200 | |||
| Transport box (LxWxH) cm | 170x105x84 | 190x105x84 | 210x184 | 230x105x84 |
Scope of delivery - payment - shipping - service
SCOPE OF DELIVERY
► Wooden box or metal frame (snow plow, backhoe) for safe shipping
► PTO shaft (if necessary)
► Gearbox (only for flail mulchers)
► German operating instructions with spare parts list and exploded drawings
PAYMENT
We offer 6 payment methods to choose from. There is sure to be the right thing for you ....
► Advance payment with 3% discount
► Purchase on account (payment term usually 30 days from order; Germany only)
► PayPal
► Direct debit
► Credit card
► Installment payment
SHIPPING
► Freight-free delivery in Germany and many other European countries
► Delivery by forwarding agency within 1 to 3 working days
► Delivery by lifting platform
► A delivery date can be agreed with you on request
► Online shipment tracking all over Europe
► Express delivery "Next Day" possible on the next working day
SERVICE
► 24 months warranty (12 months commercial customers)
► Regional repair service
► All spare and wear parts can be delivered immediately
We are happy to answer your questions at any time. Send us an email info@bowell-tractor.com or just give us a call: +49 - (0) 4188-4444-773
