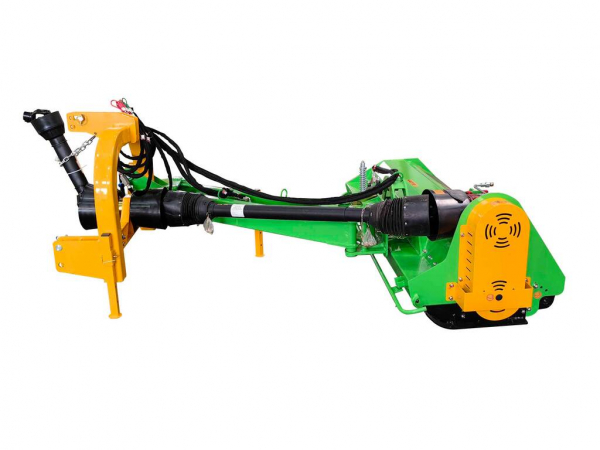

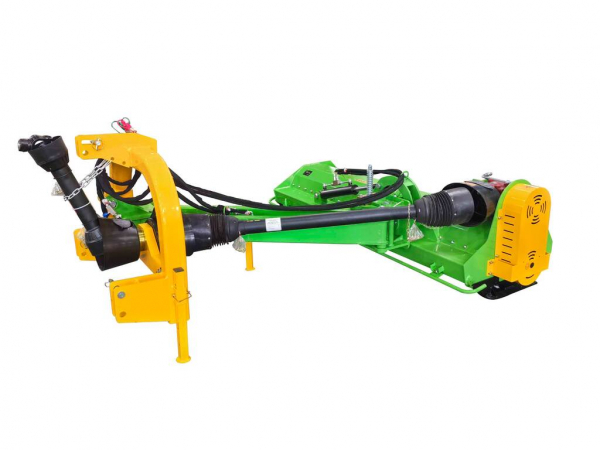

BCRS-series - for working width from 180cm to 220cm
Heavy duty embankment / verge flail mower with hydraulic swivel arm for medium and larger tractors with 60hp to 120hp engines with CAT II 3-point hitches.
The Bowell BCRS embankment/verge flail mowers complies with all safety regulations and is CE tested following the 2006/42/EC machine directive.
➤ For tractors with cat. II 3 point hitch
➤ With hydraulic swivel arm
➤ new rotor shaft with spiral arranged flail hammers
➤ Up to a grass height of approx. more than 120 cm
➤ 180 to 220 cm working width
➤ For 60-120 HP tractor
Including PTO shaft ✓
Including 2 l gear oil ✓
Free shipping ✓
Video
Customer-Video

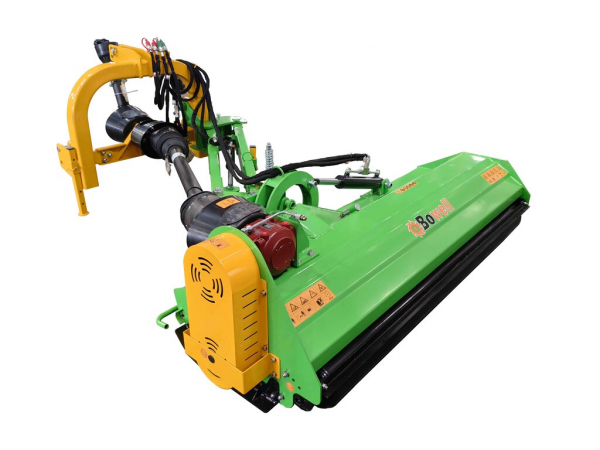

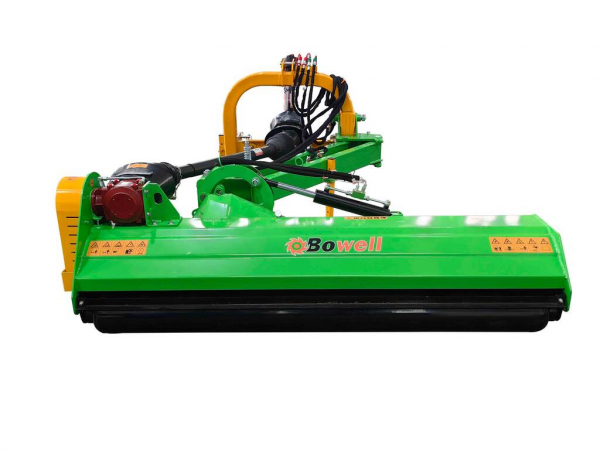

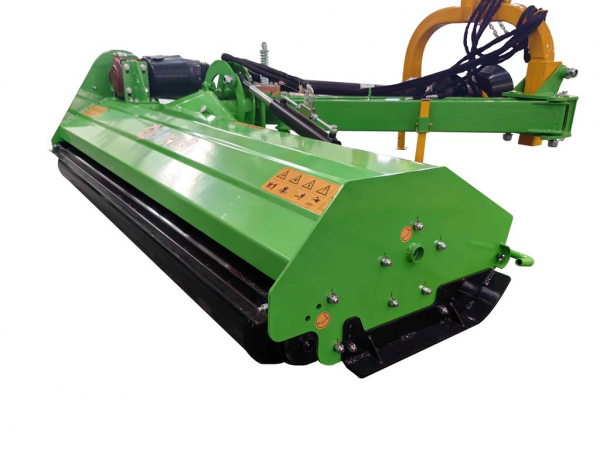

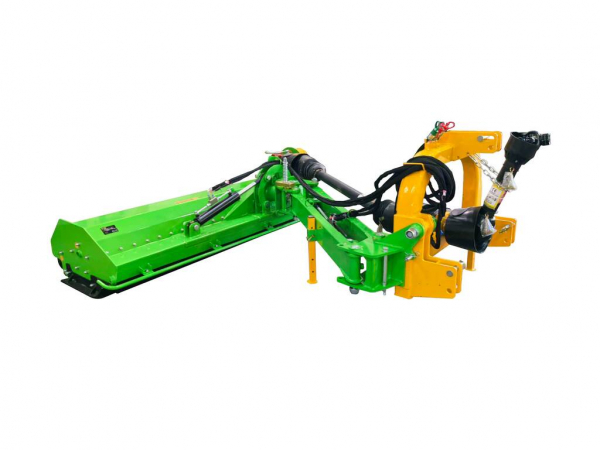

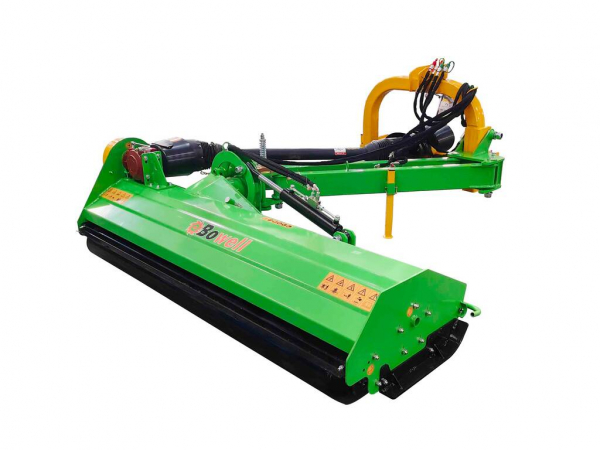

The Bowell BCRS verge flail mower series is equipped with a large and extremely powerful transmission made by the famous italian factory Comer, making this embankment mower the perfect choice for medium and larger tractors. These professional mowers come with working widths of up to 220cm and a hydraulic swivel arm for maximum flexibility and a mowing range angle from -60° to +90°. The maximum distance from the middle of the tractor to the right side of the mower is up to 340cm, depending on the BCRS-model. In combination with the right tractor BCRS-mowers are superior to almost any vegetation and can still offer high work efficiency.

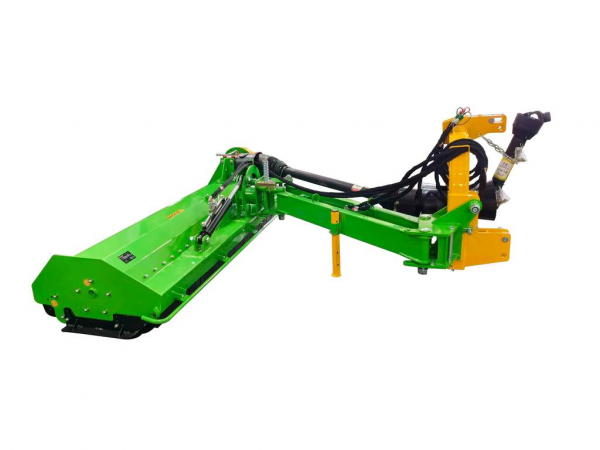

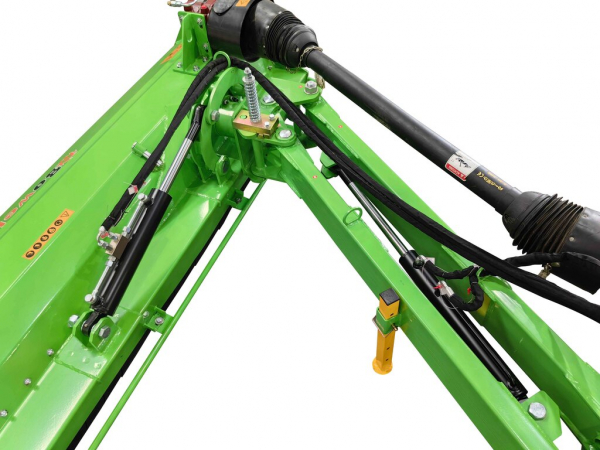

The new hydraulic swivel arms are internaly reinforced and not only allows mowing in almost any position, but it also saves manoeuvring in narrow corners when you use the BCRS as regular flail mower. Your tractor needs 2 double acting hydraulic control circuits in order to fully operate the swivel arm.
Technology - innovative crash protection system

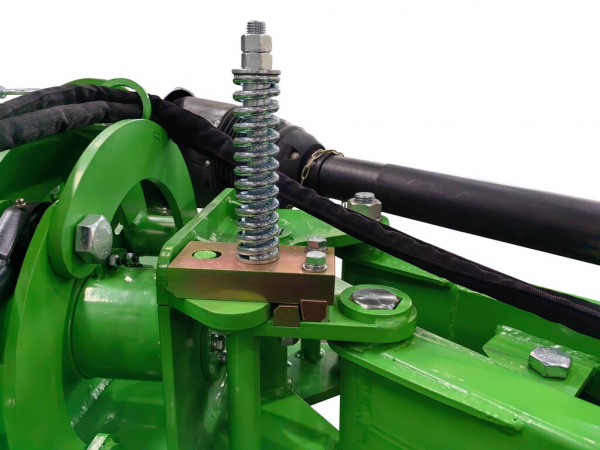

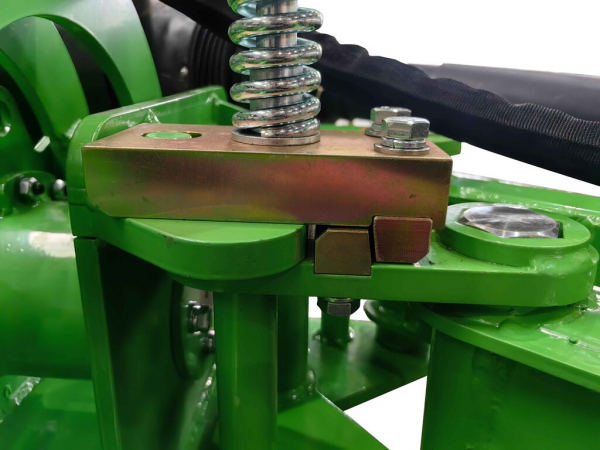

The Bowell BCRS verge mower series comes with a new intelligent spring-based crash protection system, which lets the mower swing out to the back, in case you hit a solid piece of material. This additonal swivelling feature gives the tractor driver the opportunity to brake in time, before serious damage is done to the mower. This safety feature is totally maintenance free and runs reliably for years.
Bowell is using 16 to 20 of the new large forged and galvanized high performance flail hammers (depending on working width) - each with a weight of 1300gr - that ensure a perfect mowing result on grass, undergrowth and bushes up to 30mm in diameter. The mowing height is adjusted by the heavy self cleaning roller, to prevent the mower from cutting into the ground on bumpy surface. The new counter knifes help to even cut high grass with perfect efficiency.
The large professional Comer free-wheel transmission lets the knife shaft turn, once the PTO is switched off, so that its movement will not be transferred to the tractor. The mower´s front is equipped with safety flaps to prevent debris and stones being thrown out of the machine.
540 / 1000 U/min PTO shaft speed
The installed Comer gear box can be used both with 540 and 1000 RPM PTO speed. Bowell BCRS verge mower gear boxes come with the Bowell Power Efficiency Technology. If your tractor also supports the 1000 RPM PTO speed, you can operate your mower at this high speed. You only need to exchange the factory installed pulleys against each other and you can reach a more efficient performance with less fuel consumption. Bowell Power Efficiency Technology saves fuel from day one.

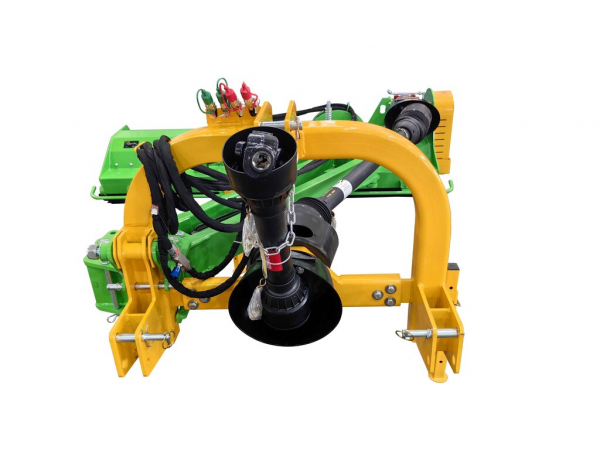

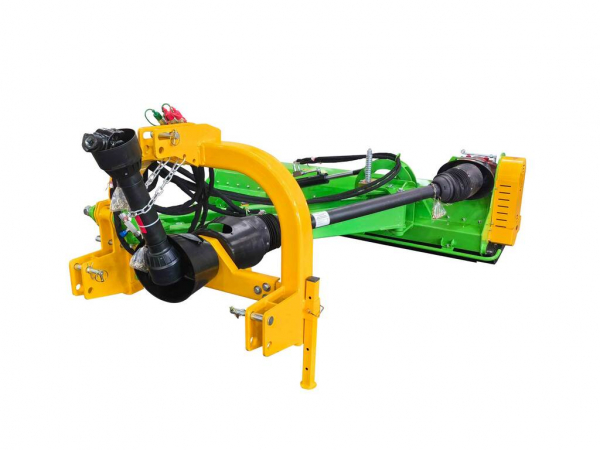

All BCRS-mowers have easily accessible new stainless steel grease nipples for easy service and height adjustable skids and support legs for storage. New double PTO shaft system uses a 100cm PTO shaft from tractor to 3-point hitch and a massive 180cm double wide angle PTO shaft from hitch to mower gear box and is part of the accessory for all BCRS-flail mowers. The short and easy service plan in the user manual helps you on maintenance and service.
The large rear gate can be opened for easy maintenance, but has to be closed for safety reasons during operation.
The completely assembled machine is delivered in the massive Bowell wooden case. Just the 3-point hitch, the hydraulic swivel arm and the PTO shaft protector have to be assembled, taking you less than 1h time. We offer an assembly guide with photos to assist you.
SKF ball bearings
Like all other Bowell mowers, the BCRS series comes with a SKF ball bearing mounted and electronically balanced rotor shaft which is driven by 4 belts. Despite the high knife weight of 1300gr each the Bowell belt system guarantees an almost 100% power transfer rate without belt problems. The heavy free-wheel gear box runs in an oil bath, so the transmission oil, that comes with the machine, has to be filled in before you first use the machine.
Underneath the massive up to 6mm steel housing sits the massive laser balanced knife shaft with 16 to 20 high performance forged and galvanized hammer shaped knifes, each with a weight of 1300gr. The knifes are made of forged steel and can be individually exchanged and regrinded. Powered by the PTO shaft, the knife shafts turns with an amazing 2150 rpm and cuts the material down to a minimum, so that it can rot away fast. The heavy roller in the back of the mower guarantees smooth performance even on rough grounds
✅ large rear gate on the mower housing for easy maintenance
✅ new optional 1000rpm PTO shaft speed support
✅ new double PTO shaft system with wide angle PTO shaft
✅ SKF ball bearing mounted rotor shaft
✅ performance rotor shaft with spiral arranged flail hammers
✅ new crash protection device for more safety
✅ 2L transmission gear oil included
✅ stainless steel grease nipples
✅ reinforced Cat-2 3-point hitch
✅ new forged 1300gr high performance hammer flails
✅ replaceable counter knives for optimal shredding
✅ 4 belts drive system
✅ easy testing of belt tension
We from Bowell Tractor firmly believe that you will not find a better value for money heavy duty embankment lail mower in the market. Feel free to compare ours to the other products in the market and we are sure you will agree.
ATTENTION
Partially assembled machines do not contain any fuel , oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the multi lingual user manual.
