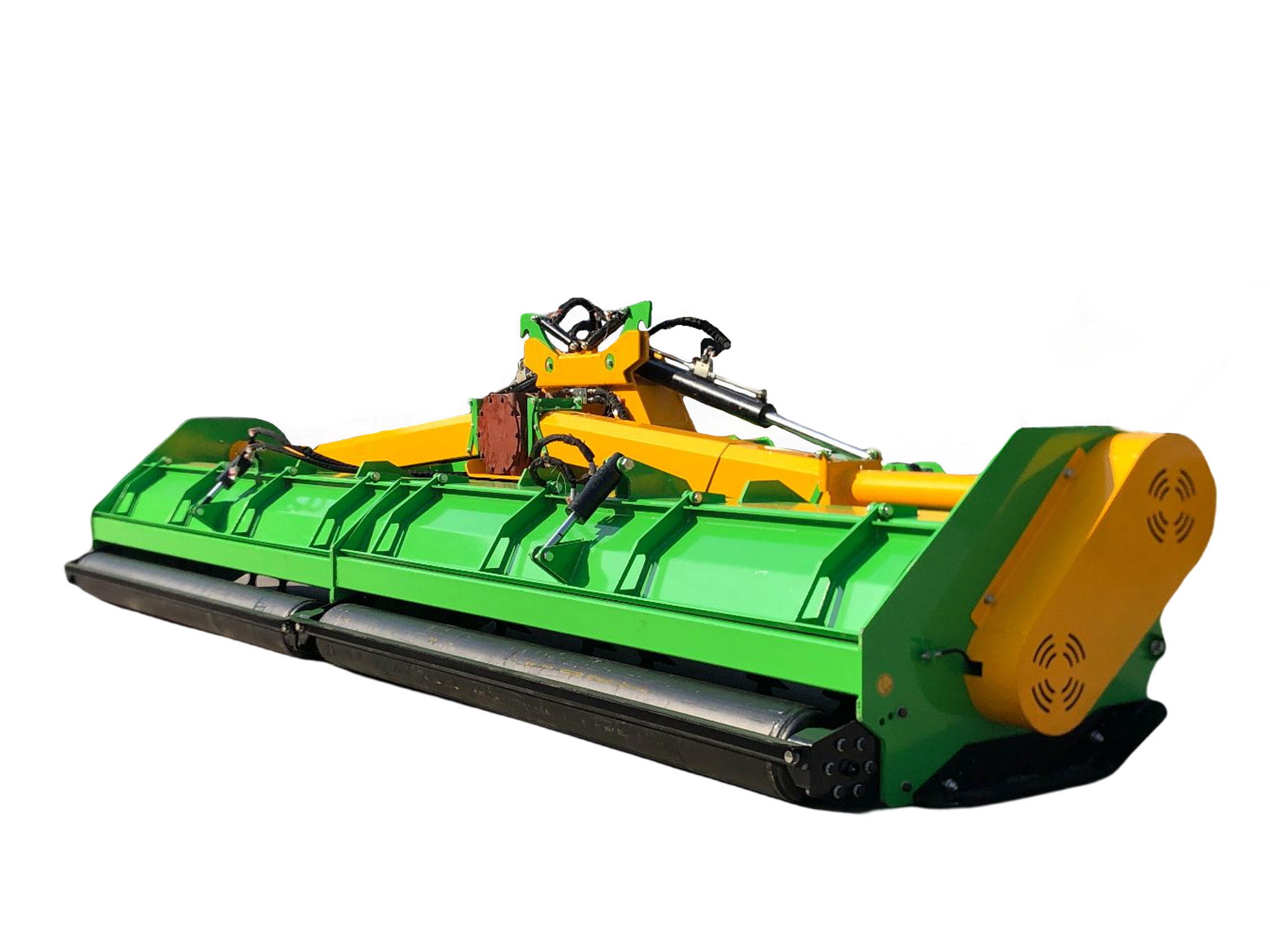

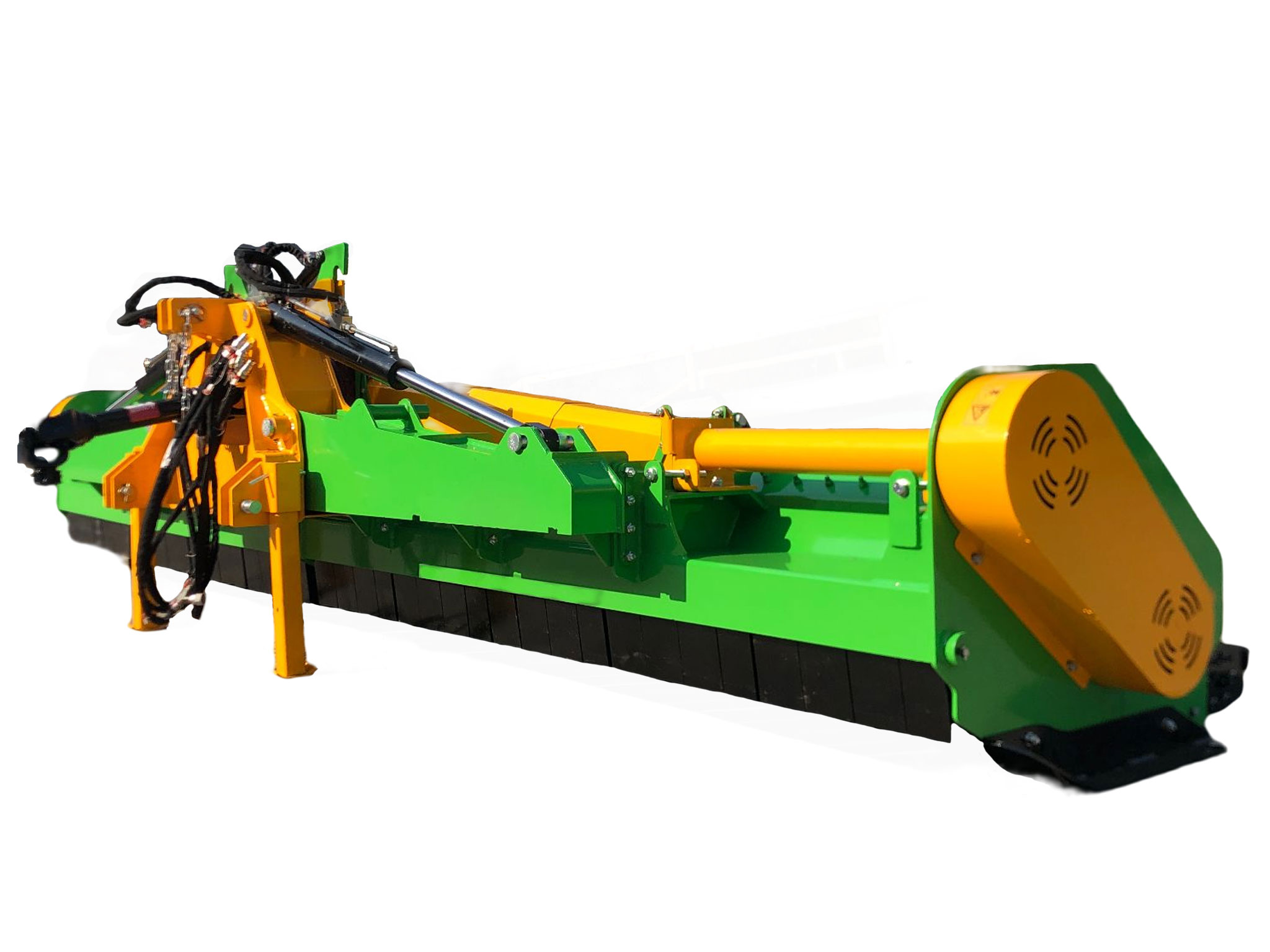

BFX-series - heavy duty foldable flail mower with working widths from 480cm to 600cm
Heavy duty flail mower with hydraulic folding mechanism for large tractors with 140hp to 250hp engines with CAT II / CAT III 3-point hitch
The Bowell BFX-flail mowers comply with all safety regulations and is CE tested following the 2006/42/EC machine directive.
➤ For tractors with cat. II & III 3 point hitch
➤ With hydraulic folding mechanism
➤ PowerCut® rotor with 40% more hammers
➤ Performance Rotor with spiral arranged flail hammers
➤ For more than 150 cm grass height
➤ 480 to 600 cm working widths
➤ For 140-250 HP tractor

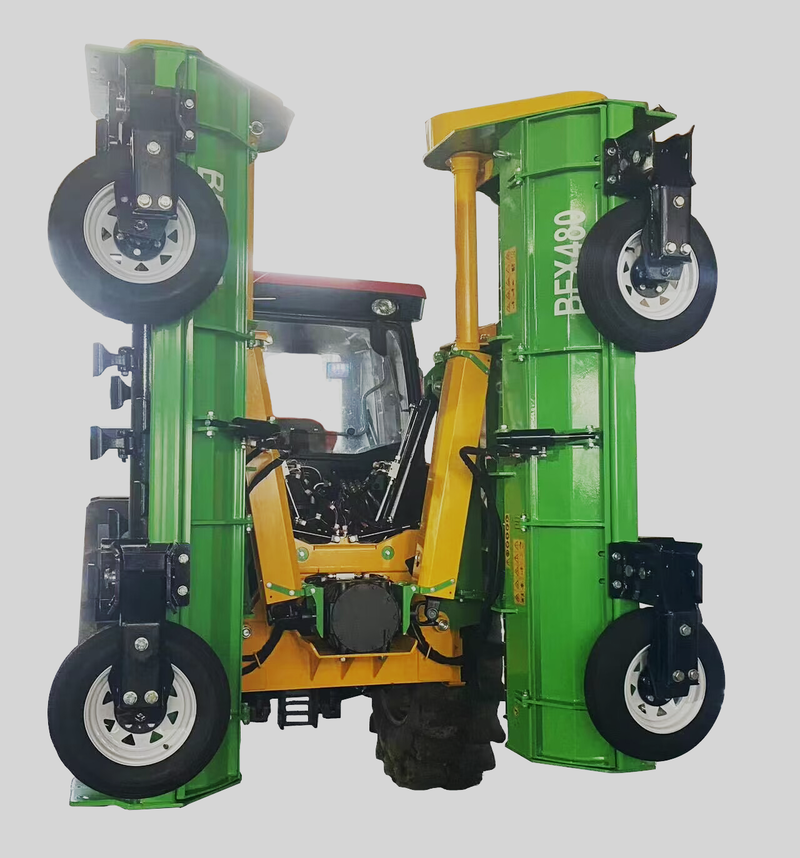

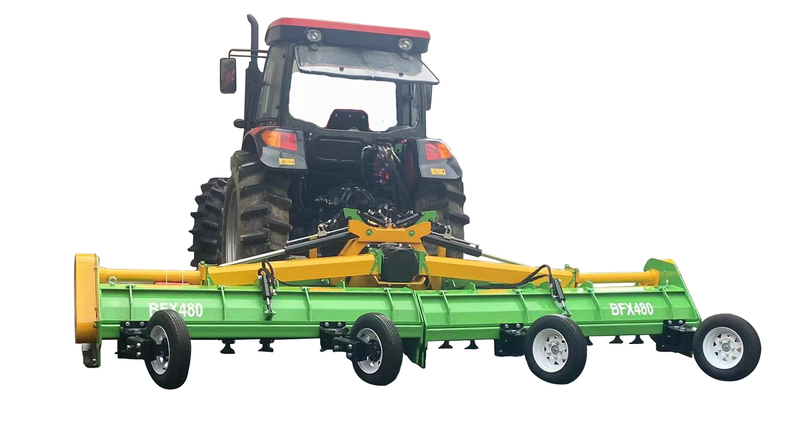

➤ optional rear wheels
Including PTO shaft ✓
Including 2 l gear oil ✓
Free shipping ✓
Video: working with the Bowell BFX flail mower

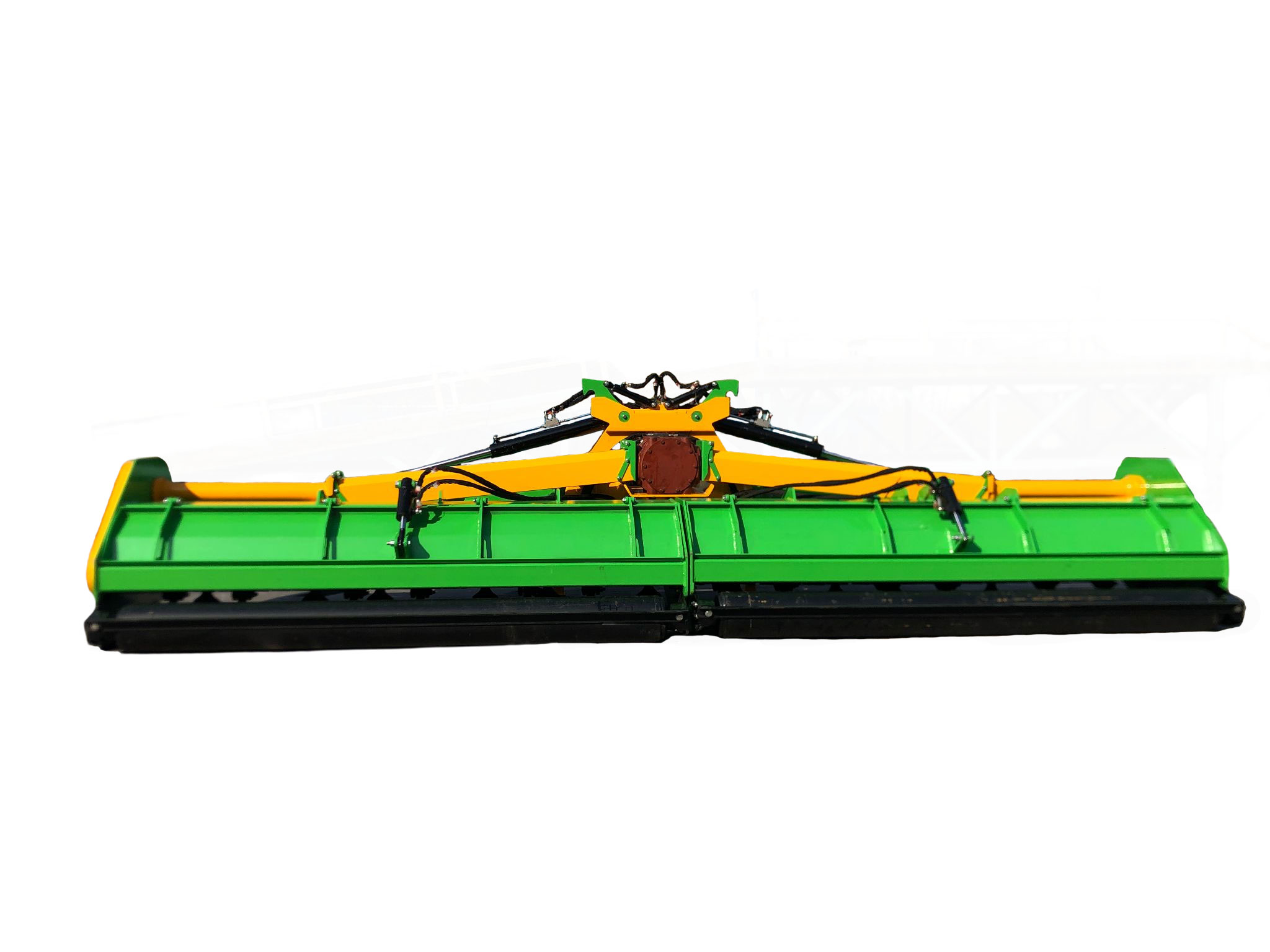

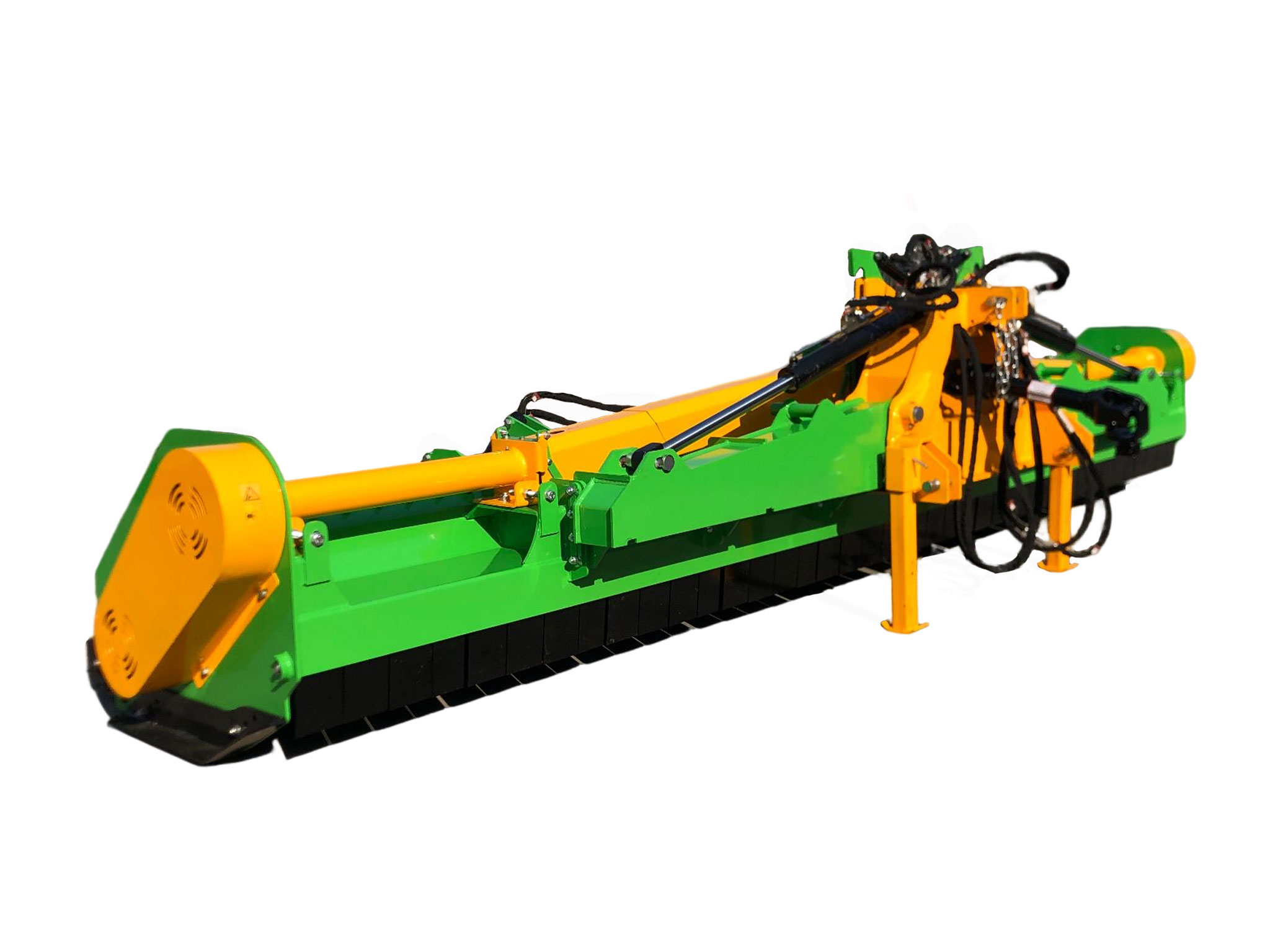

The foldable Bowell BFX flail mower series is equipped with a very powerful double sided transmission made by the italian factory CMR, making it the perfect choice for large tractors with up to 250hp. With available working widths of 480cm or 600cm, Bowell`s professional BFX foldable mowers are designed for large farms with the need for high work efficiancy when cutting grass, crop residues, cornstalks and shredding branches or twigs. In combination with the right tractor BFX-mowers are superior to almost any vegetation and offer the highest work efficiency. The hydraulic folding mechanism will reduce the transport width to 220cm within seconds for easy transport on puiblic roads.
Bowell is using 60 or 80 large high performance forged flail hammers - each with a weight of 1400gr - that ensure a perfect mowing result on grass, undergrowth and bushes up to 30mm diameter. The new counter knifes inside the mower help to even increase the performance to allow mulching even very high grass. The mowing height is adjusted by the heavy self cleaning rear roller, to prevent the mower from cutting into the ground on bumpy surface.

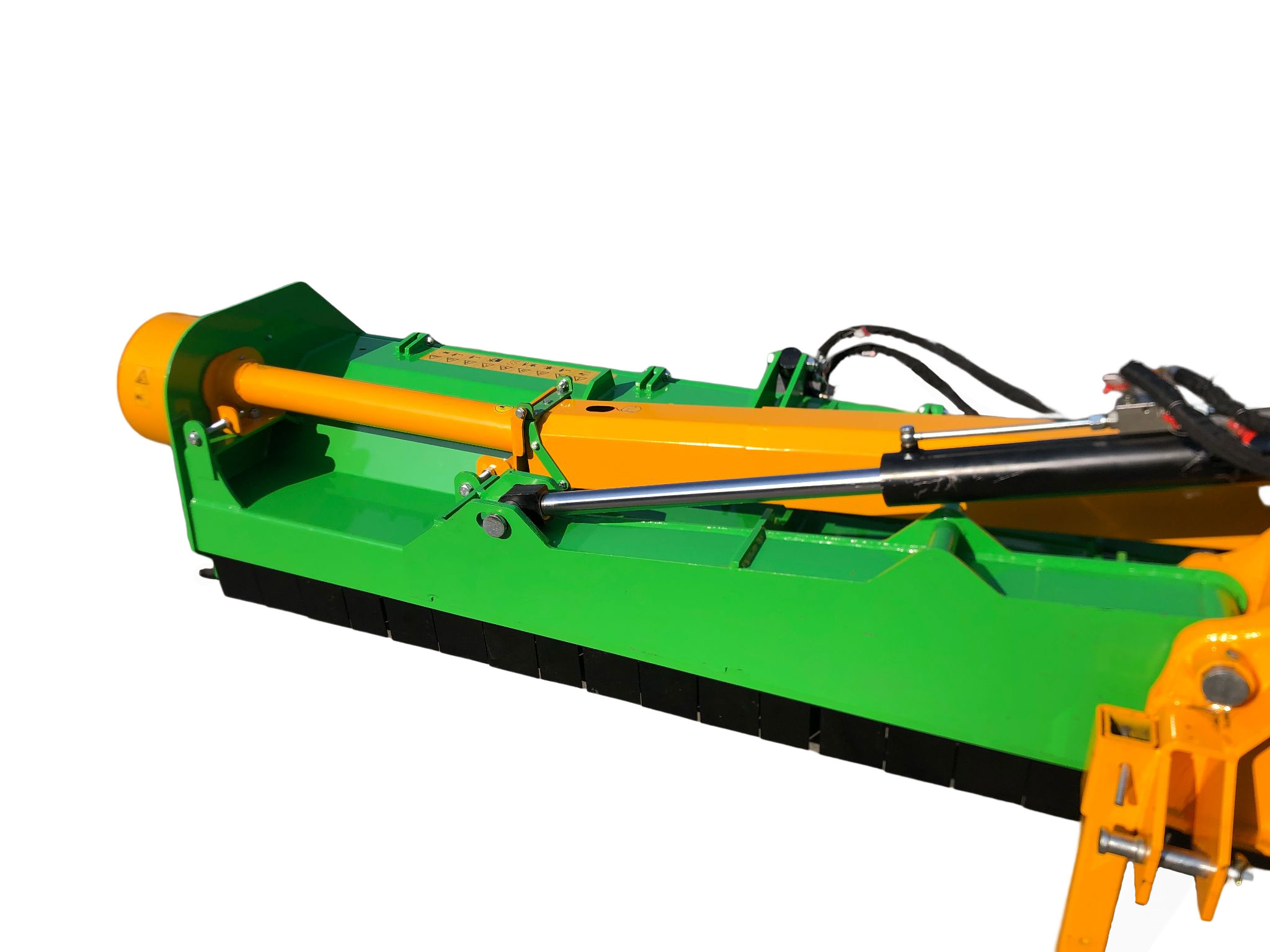

The large CMR free-wheel transmission lets the rotor shaft turn, once the PTO is switched off, so that its movement will not be transferred to the tractor. The mower´s front is equipped with safety flaps to prevent debris and stones being thrown out of the machine.

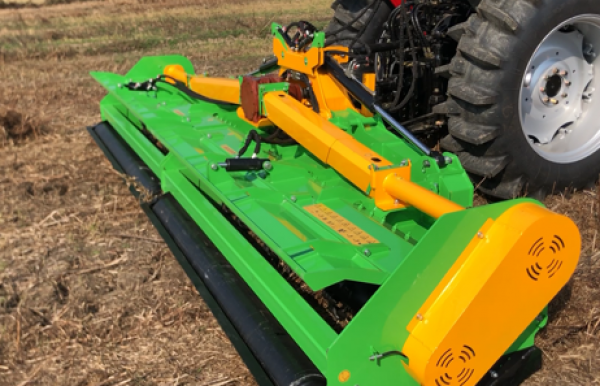

Hydraulic rear maintenance gate
Flail mower for 1000 rpm PTO shaft
.jpg)
The double sided CMR gear box supports 1000rpm PTO speed. The Bowell BFX flail mowers are using the Bowell Power Efficiency Technology. Your tractor needs to support 1000rpm PTO speed to acchieve a mowing performance with higher efficiency and less fuel consumption. Save fuel with the new Bowell Power Efficiency technology at no extra cost and from the first meter.

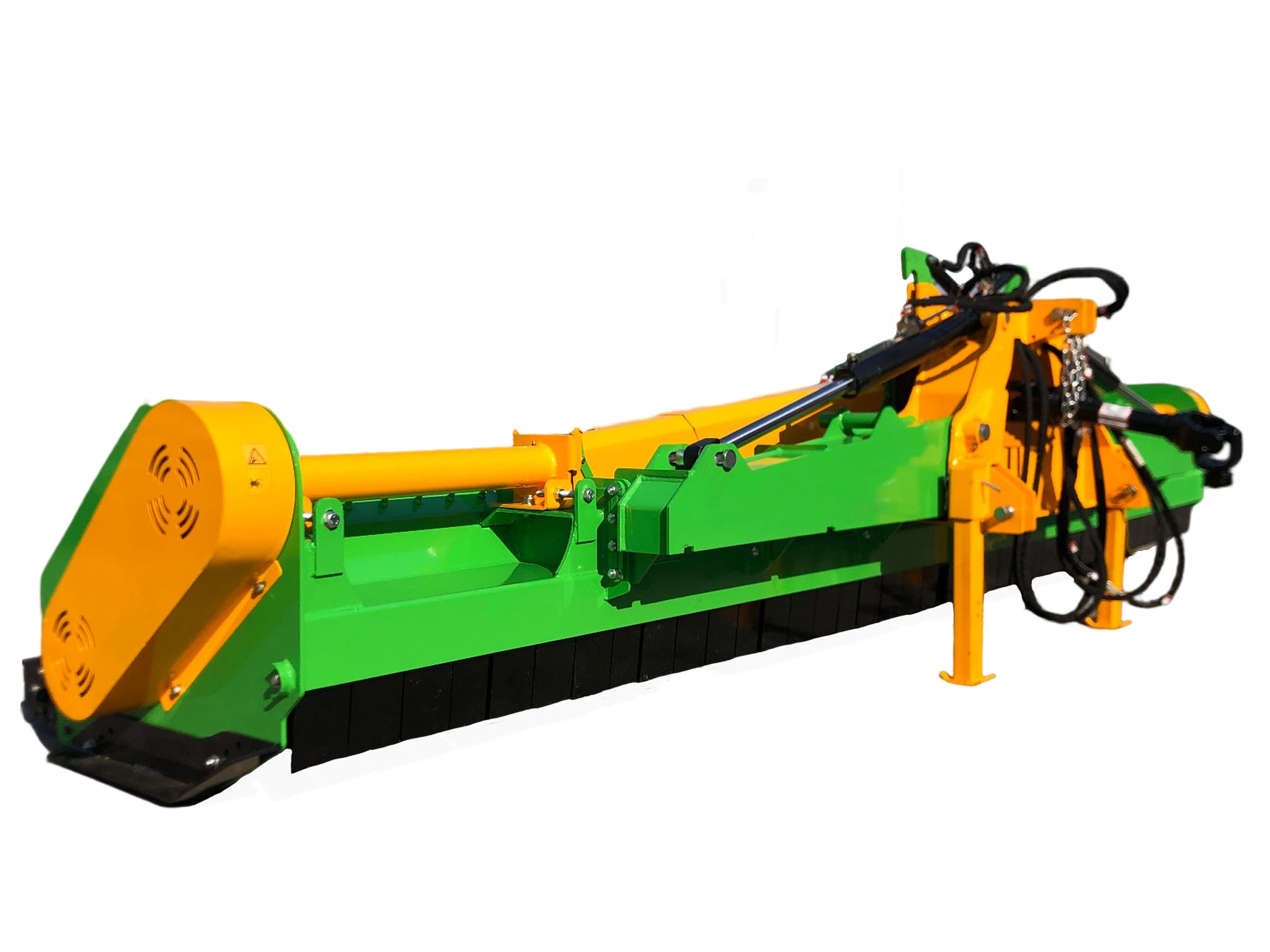

Bowell BFX-large flail mower with double 5-belt drive system

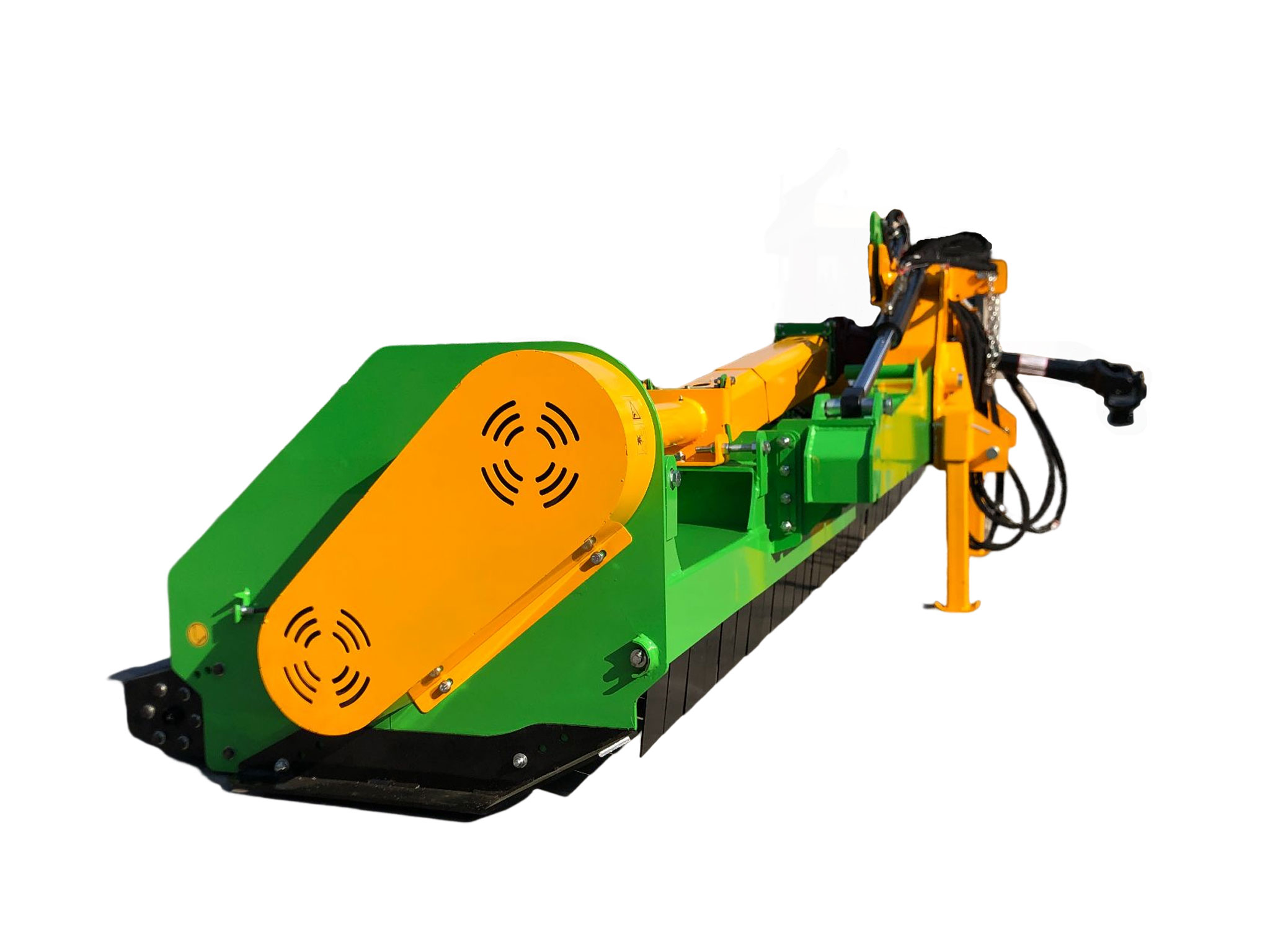

The new Bowell double 5-belt drive system on the BFX-480 uses 22mm wide drive belts and reinforced pulleys to guaratee an almost 100% power transfer rate with virtually 0% belt slippage even for these large mowers. The Bowell belt cover lets you check the correct belt tension within seconds without having to remove the belt cover and allows belt ventilation to cool down the belts on hot summer days for longer belt life. This makes service and maintenance a lot easier than before.
All BFX-mowers have easily accessible stainless steel grease nipples for easy service and come with height adjustable side skids and support legs for storage. The short and easy service plan in the multi lingual user manual helps you on all operating, maintenance and service issues.The completely assembled machine is delivered in the massive Bowell steel crates.
SKF ball bearing with performance rotor and PowerCut®
The BFX-480/600 mowers come with large SKF rotor shaft ball-bearings sitting in massive CNC-made bearing seats. This is important, because the heavy and extra wide rotor shafts are turning with 2068rpm and cut the material down to a minimum, so that it can rot away fast. The rotor shafts are specially designed. The flail hammers are mounted in a helix order, so despite the wide working width never more than two flails per rotor shaft are actually cutting at the same time. This significantly reduces the needed mowing power.
Double walled housing
For wide and heavy fail mowers, using very high RPM on the rotor shaft, a torsion-resistant and low vibration housing is the precondition for a reliable machine. Next to massive side walls, which are 10mm thick on the Bowell BFX-series, best results are achieved when using double walled housings. The Bowell BFX-mower comes with a 6mm strong outer housing in addition to a 5mm thick inner housing on more than 90% of the housing surface. Both housings are welded and bolted together. This leads to a very smooth operation of this professional implement.
Bowell BFX features
✅ double sided transmissions from CMR Italy for 1000 rpm PTO connection
✅ new 1400 gr forged flail hammers

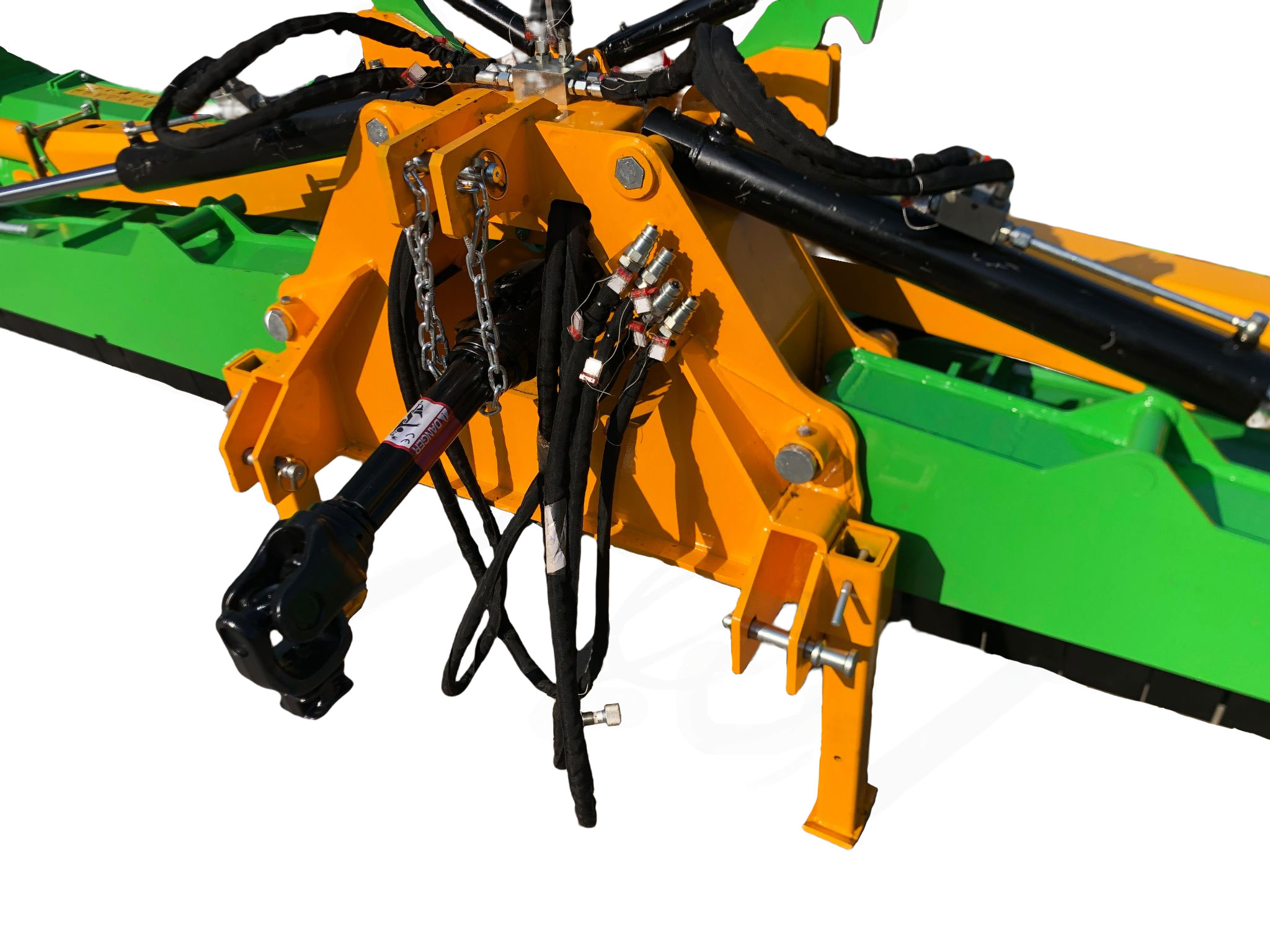

✅ reinforced Cat II / Cat III 3-point-hitch
✅ double walled mower housing; 6mm + 5mm on over 90% of the mower housing
✅ 10mm side wall strength

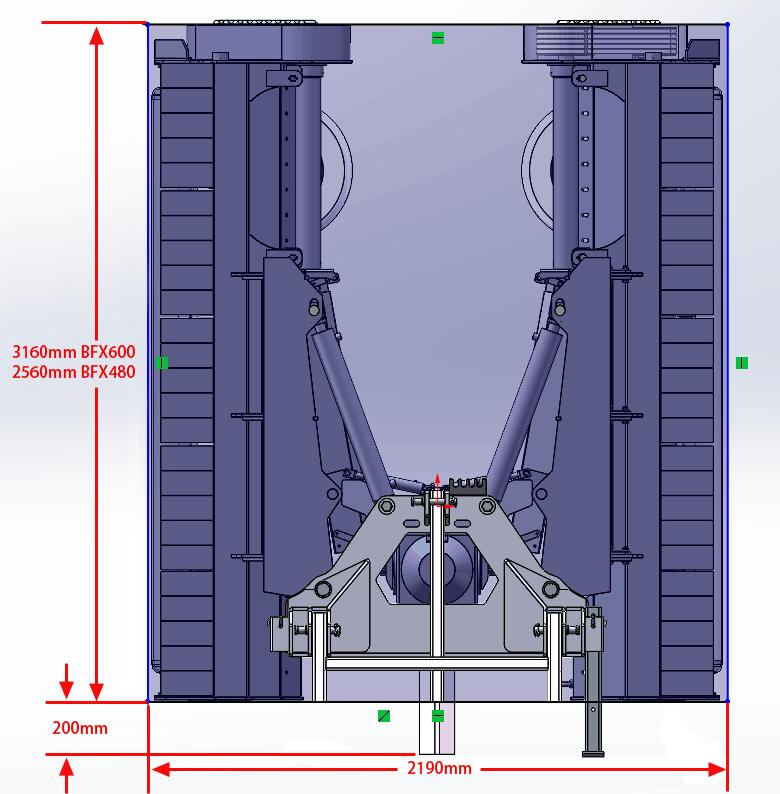

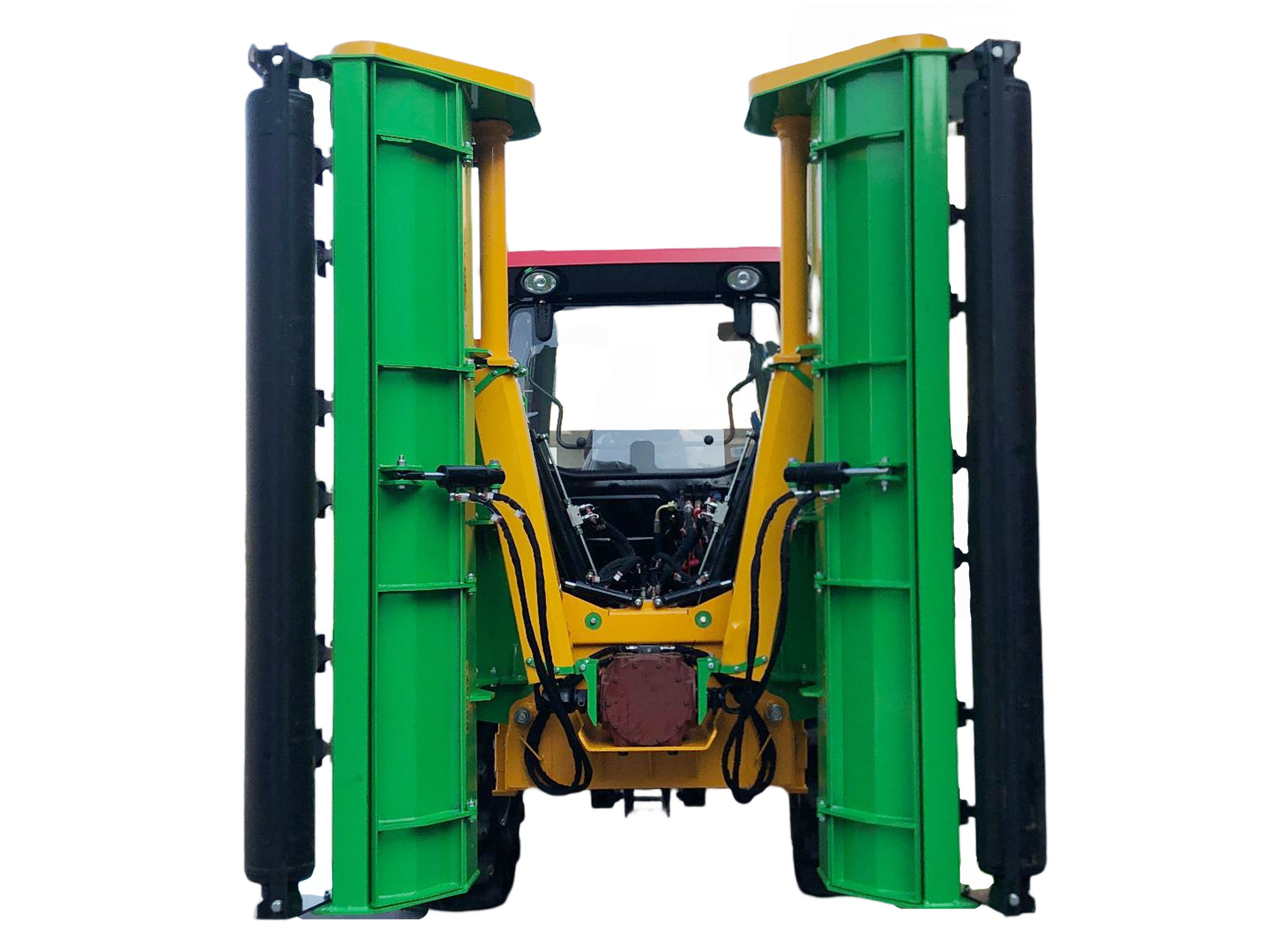

✅ hydraulic folding mechanism for 220cm transport width on public roads
✅ performance rotor with spiral arranged flail hammers
✅ PowerCut Rotor shaft with 40% more hammers
✅ SKF ball bearing mounted rotor shaft
✅ Bowell Power Efficiency Technology for 1000 RPM PTO shaft speed
✅ stainless steel grease nipples
✅ exchangeable counter knives for improved shredding of the material
✅ easy belt tension testing
✅ double 5-belt drive system
We from Bowell Tractor firmly believe that you will not find a better value for money heavy duty flail mower in the market. Feel free to compare ours to the other products in the market and we are sure you will agree.
ATTENTION
Partially assembled machines do not contain any fuel , oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the English user manual.

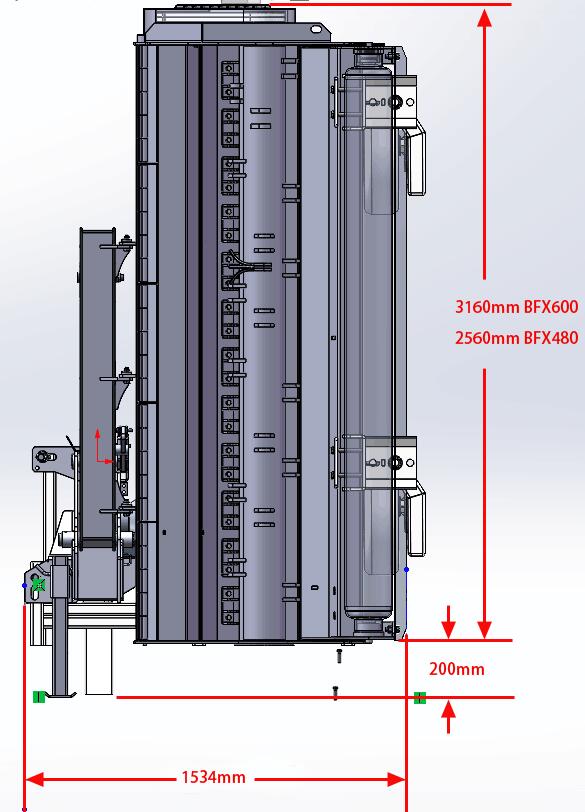

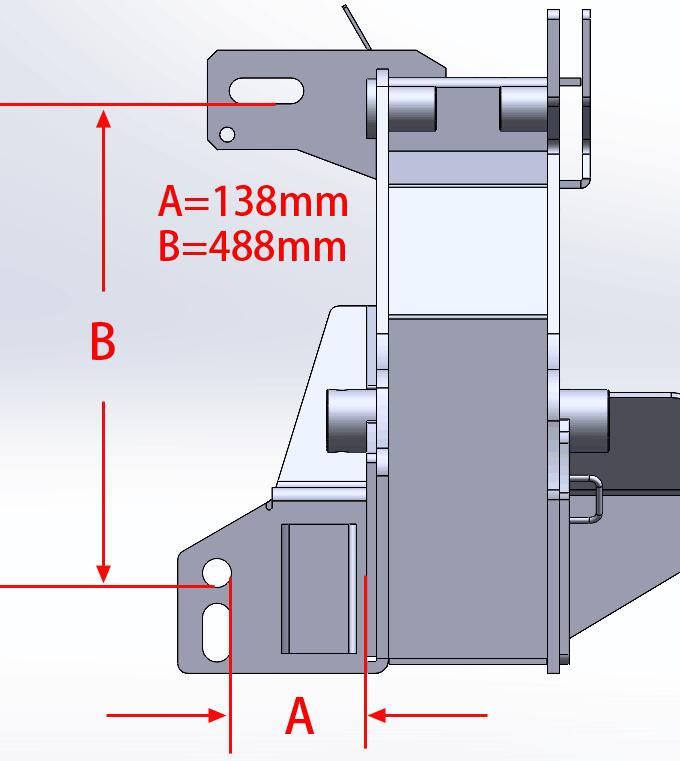

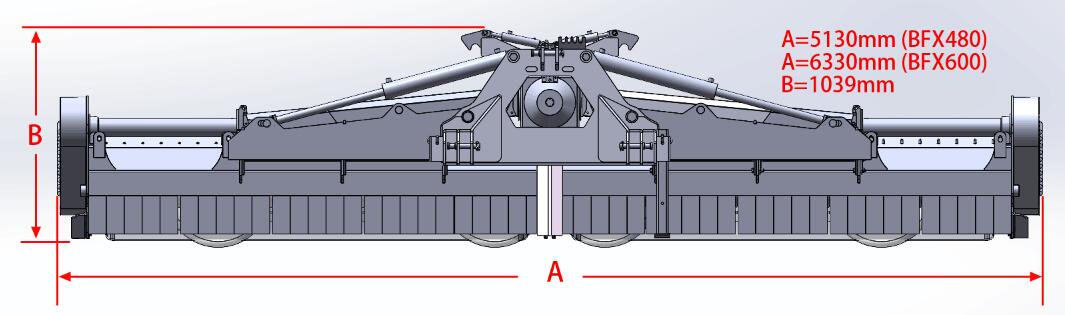

How is he BFX-flail mower sitting behind your tractor ?
The reference is always the center of your tractor, where normally the PTO output is located.
The BFX flail mowers are always centered behind your tractor, so that the outreach to the left and right of your tractor is always the same.
| Technical Data Bowell BFX wide choppers / folding mower / rear mower / flail mower | ||
| DATA | BFX-480 | BFX-600 |
| dimensions (LxWxH) mm | 5130x1534x1093 | 6330x1534x1093 |
|---|---|---|
| total weight incl. PTO shaft kg | 2033 | 2644 |
| working width cm | 480 | 600 |
| recommended grass height cm | < 200 | |
| adjustable mowing height mm | 20 - 60 | |
| 3-point hitch tractor | Cat 2 / Cat 3 | |
| tractor PTO shaft RPM clockwise | 1000 1-3/4" | |
| hydraulic folding mechanism | 0° to 90° | |
| length of hydraulic pipes cm | 36/210/200/100/80/100 | |
| length of PTO shaft mm | 1200 | |
| work performance (approx) m²/h | 28000-56000 | 32000-64000 |
| drive belts qty. / width mm | 10 / 22 | |
| recommended tractor engine power hp/KW | 140-180/103-133 | 210-250/155-185 |
| rotor shaft diameter / wall thickness mm | 168 / 10 | 194 / 10 |
| rear roller diameter / wall thickness mm | 196 / 6 | |
| material strength housing outside / inside mm | 6 + 5 | |
| material strength sidewall mm | 10 | |
| painting | powder coating | |
| flail type | hammer, forged | |
| number of flails | 2 x 30 | 2 x 40 |
| flail weight gr | 1400 | |
| rotor shaft RPM | 2068 | |
| transport box (LxWxH) cm | 219x154x256 | 633x154x120 |
