Bowell BCRXpro Heavy Duty Verge Mower with PowerCut® rotor for 120-200 HP Tractor

Heavy duty embankment / verge flail mower with hydraulic swivel arm for larger tractors with 120hp to 200hp engines with CAT II & III 3-point hitches.

The Bowell BCRXpro embankment / verge flail mowers complies with all safety regulations and is CE tested following the 2006/42/EC machine directive.

➤ for tractors with cat. II & III 3 point hitch
➤ with hydraulic swivel arm
➤ performance rotor with spiral arranged flail hammers
➤ PowerCut® Rotor with 40% more flail hammers
➤ rear roller with 2 different mounting positions
➤ over 150 cm grass height
➤ 260 to 280 cm working width
➤ for 120-200 HP tractor

Technology  - innovative crash protection system

Bowell is using 36 to 40 of the new large forged high performance flail hammers (depending on working width) - each with a weight of 1300gr - that ensure a perfect mowing result on grass, undergrowth and bushes up to 40mm in diameter. The mowing height is adjusted by the heavy self cleaning roller, to prevent the mower from cutting into the ground on bumpy surface. The new counter knifes help to even cut high grass with perfect efficiency.

The large professional Bondioli&Pavesi free-wheel transmission lets the rotor shaft turn, once the PTO is switched off, so that its movement will not be transferred to the tractor. The mower´s front is equipped with safety flaps to prevent debris and stones being thrown out of the machine.

variable rear roller position

Depending on the material to be chopped, the technical requirements of the mulcher can vary. The Bowell BCRXpro mulcher therefore has a trailing roller that can be mounted in two different positions. If the material is placed in front of the roller and then driven over by it, it is compressed, which is irrelevant if it is subsequently worked in with a roundabout harrow or rotary tiller. However, if the material is placed behind the roller - i.e. not compressed - it rots faster and more light and air reaches the meadow below. On uneven surfaces, a small distance between the trailing roller and the rotor shaft can be advantageous for ground levelling. The chopped material is then deposited behind the support roller. However, with dry chopped material such as maize straw, this can lead to a lot of churning, which can impair the cooling performance of the tractor engine when mounted at the front. The Bowell BCRXpro mulcher offers the option of moving the rear roller or support roller 20 cm further to the rear. This allows the chopped material to be deposited in front of the roller. By changing the position of the support roller, the BCRXpro flail mower can adapt perfectly to different conditions. There are three positions for the support roller to adjust the mowing height.

SKF ball bearings with performance rotor shaft with PowerCut® and 40% more flail hammers

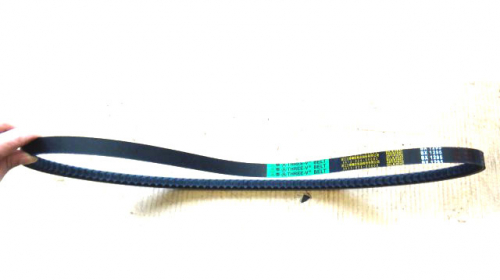

Like all other Bowell mowers, the BCRXpro series comes with a SKF ball bearing mounted and electronically balanced rotor shaft which is driven by 5 belts. Despite the high knife weight of 1300gr each the Bowell belt system guarantees an almost 100% power transfer rate without belt problems. The heavy free-wheel Bondioli&Pavesi  gear box runs in an oil bath, so the transmission oil, that comes with the machine, has to be filled in before you first use the machine.
The flail hammers are mounted in a spiral, so despite the wide working width never more than two flails are actually cutting at the same time. This significantly reduces the needed mowing power. The PowerCut® rotor shaft omes with 40% more flail hammers, so you can run your tractor significantly faster to save time and fuel.

Underneath the massive double 4 + 4mm steel housing sits the massive laser balanced knife shaft with 36 to 40 high performance forged hammer shaped knifes, each with a weight of 1300gr. The knifes are made of forged steel and can be individually exchanged and regrinded. Powered by the PTO shaft, the knife shafts turns with an amazing 2150 rpm and cuts the material down to a minimum, so that it can rot away fast. The heavy roller in the back of the mower guarantees smooth performance even on rough grounds

We from Bowell Tractor firmly believe that you will not find a better value for money heavy duty embankment lail mower in the market. Feel free to compare ours to the other products in the market and we are sure you will agree.
