BCRX-series - for working width from 240cm to 280cm
Heavy duty embankment / verge flail mower with hydraulic swivel arm for medium and larger tractors with 100hp to 200hp engines with CAT II & III 3-point hitches.
The Bowell BCRX embankment/verge flail mowers complies with all safety regulations and is CE tested following the 2006/42/EC machine directive.
➤ for tractors with cat. II & III 3 point hitch
➤ with hydraulic swivel arm
➤ Performance Rotor shaft with spiral arranged flail hammers
➤ over 150 cm grass height
➤ 240 to 280 cm working width
➤ for 100-200 HP tractor
Including PTO shaft ✓
Including 2 l gear oil ✓
Free shipping ✓

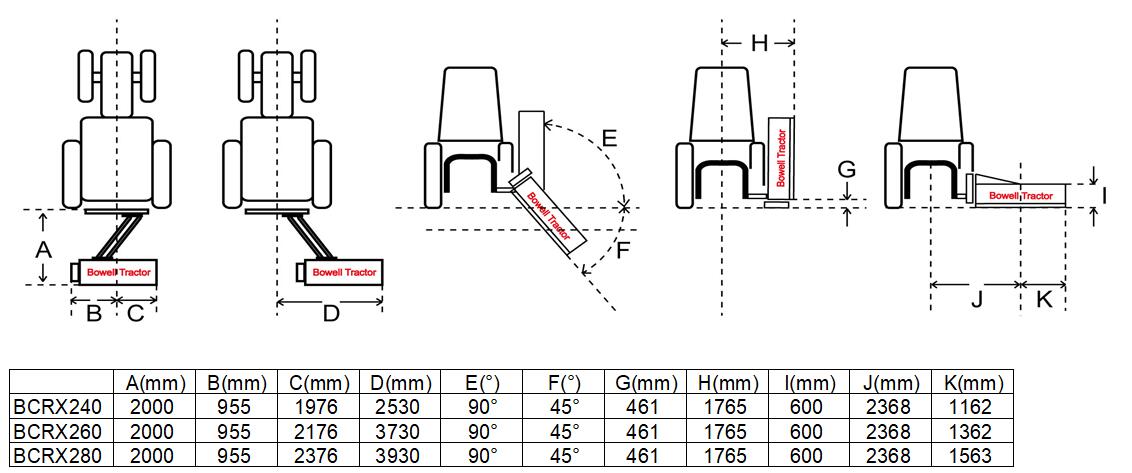

The Bowell BCRX verge flail mower series is equipped with a large and extremely powerful transmission made by the famous italian factory Bondioli&Pavesi, making this embankment mower the perfect choice for medium and larger tractors. These professional mowers come with working widths of up to 280cm and a hydraulic swivel arm for maximum flexibility and a mowing range angle from -45° to +90°. The maximum distance from the middle of the tractor to the right side of the mower is up to 395cm, depending on the BCRX-model. In combination with the right tractor BCRX-mowers are superior to almost any vegetation and can still offer high work efficiency.
The new hydraulic swivel arms are internaly reinforced and not only allows mowing in almost any position, but it also saves manoeuvring in narrow corners when you use the BCRX as regular flail mower. Your tractor needs 2 double acting hydraulic control circuits in order to fully operate the swivel arm.
Technology - innovative crash protection system
The Bowell BCRX verge mower series comes with a new intelligent spring-based crash protection system, which lets the mower swing out to the back, in case you hit a solid piece of material. This additonal swivelling feature gives the tractor driver the opportunity to brake in time, before serious damage is done to the mower. This safety feature is totally maintenance free and runs reliably for years.
Bowell is using 24 to 28 of the new large forged high performance flail hammers (depending on working width) - each with a weight of 1300gr - that ensure a perfect mowing result on grass, undergrowth and bushes up to 40mm in diameter. The mowing height is adjusted by the heavy self cleaning roller, to prevent the mower from cutting into the ground on bumpy surface. The new counter knifes help to even cut high grass with perfect efficiency.
The large professional Comer free-wheel transmission lets the knife shaft turn, once the PTO is switched off, so that its movement will not be transferred to the tractor. The mower´s front is equipped with safety flaps to prevent debris and stones being thrown out of the machine.
All BCRX-mowers have easily accessible new stainless steel grease nipples for easy service and height adjustable skids and support legs for storage. The BCRX verge mower comes with a massive 180cm PTO shaft. The short and easy service plan in the user manual helps you on maintenance and service.
The completely assembled machine is delivered in the massive Bowell metal crate. Just the 3-point hitch, the hydraulic swivel arm and the PTO shaft protector have to be assembled, taking you less than 1h time. We offer an assembly guide with photos to assist you.
SKF ball bearings with performance rotor shaft
Like all other Bowell mowers, the BCRX series comes with a SKF ball bearing mounted and electronically balanced rotor shaft which is driven by 5 belts. Despite the high knife weight of 1300gr each the Bowell belt system guarantees an almost 100% power transfer rate without belt problems. The heavy free-wheel Bondioli&Pavesi gear box runs in an oil bath, so the transmission oil, that comes with the machine, has to be filled in before you first use the machine.
The flail hammers are mounted in a spiral, so despite the wide working width never more than two flails are actually cutting at the same time. This significantly reduces the needed mowing power.
Underneath the massive double 4 + 4mm steel housing sits the massive laser balanced knife shaft with 24 to 28 high performance forged hammer shaped knifes, each with a weight of 1300gr. The knifes are made of forged steel and can be individually exchanged and regrinded. Powered by the PTO shaft, the knife shafts turns with an amazing 2150 rpm and cuts the material down to a minimum, so that it can rot away fast. The heavy roller in the back of the mower guarantees smooth performance even on rough grounds
We from Bowell Tractor firmly believe that you will not find a better value for money heavy duty embankment lail mower in the market. Feel free to compare ours to the other products in the market and we are sure you will agree.
✅ SKF ball bearing mounted rotor shaft
✅ new crash protection device for more safety
✅ 2L transmission gear oil included
✅ stainless steel grease nipples
✅ reinforced Cat-2 3-point hitch
✅ new forged 1300gr high performance hammer flails
✅ performance rotor shaft with spiral arranged flail hammers
✅ replaceable counter knives for optimal shredding
✅ 5 belts drive system
✅ easy testing of belt tension
ATTENTION
Partially assembled machines do not contain any fuel , oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the multi lingual user manual.
